Welding and Fabrication, C.N.C Machining, Mechanical and Electrical Assembly

Fabrication

• Plate Working (Heavy & Light)
• Welding: Sub Arc, MIG, TIG, SMAW.

Grinding

• Cincinati Toolroom Grinder
• Jones Shipman Cylindrical Grinder
• Eclipse Surface Grinder
• Matrix Okuma GU33
• Mostana 3L722B-80

C.N.C. Machining Centre (Multi Axis)

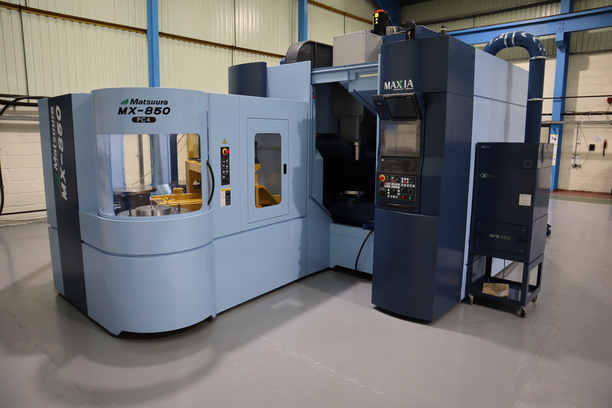

• Matsuura
  • 4 Pallet changer
  • 630mm diameter Pallet
  • 850mm diameter x 385mm high maximum workpiece size
  • 400 Kg maximum workpiece weight
  • 900mm X axis Movement
  • 780mm Y axis movement
  • 650mm Z axis movement
  • -125 to +30 A axis rotation

       360 C axis rotation

C.N.C. Turning

• Hwacheon Hi-Tech 850
  • 1050mm Swing over bed
  • 920mm maximum cutting diameter
  • 3500mm maximum cutting length
  • 3650mm Z axis movement
  • 485mm X axis movement
  • 220mm Y axis movement
  • Full C axis movement
  • 12 station turret
  • Capto quick change tooling for both radial and axial milling

C.N.C. Vertical Machining Centre

• Mazak VQC 30/50A
  • 750mm x 1240mm Table
• Asquith V.N.C.T. Production Centre
  • NUM 1040m Control
  • Table Size 4000mm x 2000mm
  • Height Under Spindle 1400mm
  • Spidle Travel 570mm

CNC Horizontal Boring

• Union Borer
  • Table Size 2000 x 18000mm
  • Rotary Table

C.N.C. Vertical Boring and Turning

• Richards Vertical Boring
  • Chuck Diameter 3500mm
  • Height of Lift 3000mm

C.N.C. Machining

• Mazak Megaturn A16 Mill Centre
  • Table Size 1650mm
  • Swing 2030mm
  • Maximum Height 1020mm

Assembly & Sub Assembly

• 20 Tonne Overhead Crane
• 10 Tonne Overhead Crane
• 25,000 Square Feet

Slotting and Broach

• Butler 12” Slot
• Lunn Davis Broach

Inspection and Testing

• Trimos Vertical Three 1m 2 Axis Dimensional Measurement
